WS600 Series High Performance Vector Control Inverter

Overview
Technical Information

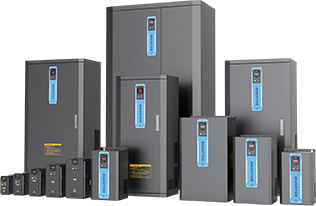

  • WS600 series inverter is a general-purpose vector inverter with excellent, reliable and stable performance, compact structure and  ease of use.
  • It can be used to drive asynchronous motors, synchronous motors and torque motors, and is widely used in CNC machine tools, cables, papermaking, lifting, hoisting, fans and pumps, petrochemicals, air compressors, textile machinery, plastic machinery, woodworking machinery, ceramic machinery, stone machinery and other industries.
Features
Parameters
Directory
Product Features
  • 1
    Optional STO (Safe Torque Off) function
  • 2
    The whole series is equipped with a metal back plate as standard
  • 3
    The whole series adopts IGBT modules
  • 4
    Oversized silicone buttons for easy operation
  • 5
    Redundant design of hardware solutions to ensure long-term stable operation
  • 6
    Support LCD keyboard, multi-language menu (optional)
  • 7
    Removable keyboard, external keyboard can be connected to facilitate customer debugging; keyboard parameter copying saves customer debugging time
  • 8
    Independent air duct design to prevent dust from contacting the circuit board and has better heat dissipation performance
  • 9
    Programmable DI/DO/AI/AO
  • 10
    Standard MODBUS 485, supports Profitnet, Profitbus, CANopen, Ethercat, PG, I/0 expansion card
  • 11
    Integrated PID function, supports most water supply applications
  • 12
    Integrated multi-speed function and simple PLC, maximum support 16-speed
Performance Parameter

ITEM NO. DESCRIPTION
Product Series Name ① WS600 Series
Applicable Motor Type ② Blank: None S: For Synchronous Motor
Design Version ③ Blank: Design Version A B: Design Version B C: Design Version C
Voltage Level ④ 3:220V 4:380V 5:480V 7:690V
Voltage Classification ⑤ S: Single Phase T: Three Phase
Applicable Motor Power ⑥ 0.75KW~1200KW R=( ·) 4R0=4.0KW 011=11KW
Applicable Model ⑦ G: General Type P: Fan and Water Pump Type
Built-in Braking Unit ⑧ B: Built-in Braking Unit (B): Braking Built-in Option Blank: None
