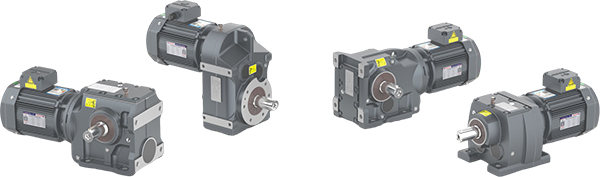

WXR.F.K.S Gearbox with Permanent Magnet Synchronous Motor

Overview
Technical Information
  • Wide power range: 0.12-200kW
  • Smooth start-up, high efficiency, low noise, and low temperature rise
  • Wide application, easy operation and flexible installation
  • High performance, high load resistance
Power 0.12-200kW
Voltage Single phase 110V/220V, 3 phase 220V/380V/415V/440V/660V/690V (Customizable)
Frequency 50/60Hz
Efficiency IE4，IE5
Rated speed of motor 1500RPM
Insulation level F (155℃)
Protection grade IP55
Lubrication Synthetic oil, mineral oil
Inverter Specialized inverter for permanent magnet synchronous motor
Features
Parameters
Directory
Features
  • IE4,IE5
    High efficiency, low energy consumption
  • Permanent magnet synchronous motor
    Small size, light weight, low temperature rise
  • Strong Versatility
    Wide range of ratio and power
  • 20CrMnTi Gear+Carburizing
    Strong carrying capacity, low noise and long service life
  • HT200/HT250 Gearbox
    Good rigidity and high compressive strength
  • Synthetic Oil
    High/low temperature resistance, long service life






Performance Parameter

R... Foot mounted
RF... Flange mounted
R...AD Solid shaft input
R...AM IEC/AM flange input


Performance Parameter

F... Foot mounted
FA...B Foot mounted with hollow shaft
FH...B Foot mounted with hollow shaft and shrink disk
FV...B Foot mounted with splined hollow shaft
FF... B5 flange mounted
FAF... B5 flange mounted with hollow shaft
FHF... B5 flange mounted with hollow shaft and shrink disk
FVF... B5 flange mounted with splined hollow shaft
FA... Hollow shaft mounted
FH... Hollow shaft with shrink disk
FV... Splined hollow shaft mounted
FAZ... B14 flange mounted with hollow shaft
FHZ... B14 flange mounted with hollow shaft shrink disk
FVZ... B14 flange mounted with splined hollow shaft
F...AD Solid shaft input
F...AM IEC/AM flange input


Performance Parameter

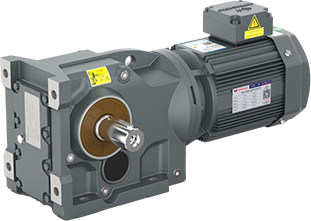

K... Foot mounted
KA...B Foot mounted with hollow shaft
KH...B Foot mounted with hollow shaft and shrink disk
KV...B Foot mounted with splined hollow shaft
KF... B5 flange mounted
KAF... B5 flange mounted with hollow shaft
KHF... B5 flange mounted with hollow shaft and shrink disk
KVF... B5 flange mounted with splined hollow shaft
KA... Hollow shaft mounted
KH... Hollow shaft with shrink disk
KV... Splined hollow shaft mounted
KAZ... B14 flange mounted with hollow shaft
KHZ... B14 flange mounted with hollow shaft and shrink disk
KVZ... B14 flange mounted with splined hollow shaft
K...AD Solid shaft input
K...AM IEC/AM flange input


Performance Parameter

S... Foot-mounted
SF... B5 flange mounted
SAF... B5 flange mounted with hollow shaft
SHF.. . B5 flange mounted with hollow shaft and shrink disk
SA... Hollow shaft mounted
SH... Hollow shaft with shrink disk
SAZ... B14 flange mounted with hollow shaft
SHZ... B14 flange mounted with hollow shaft and shrink disk
S...AD Solid shaft input
S...AM IEC/AM flange input
